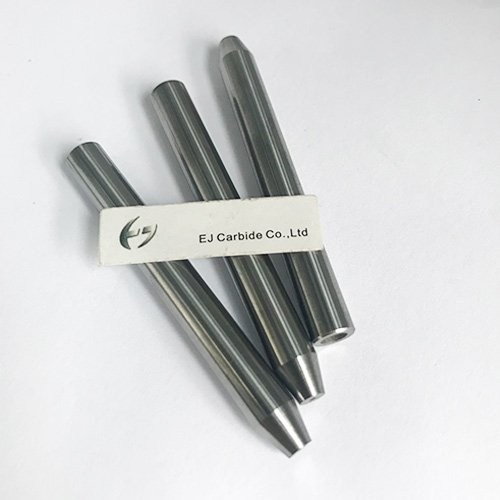

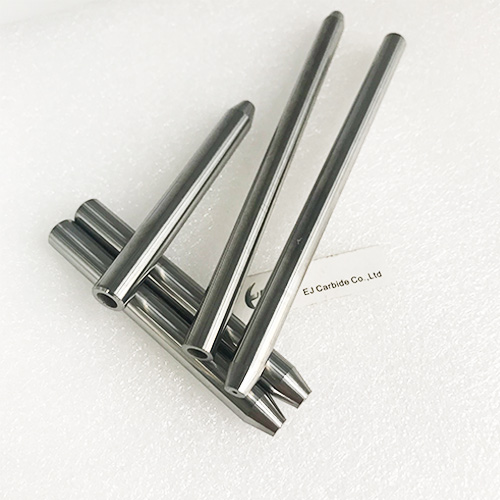

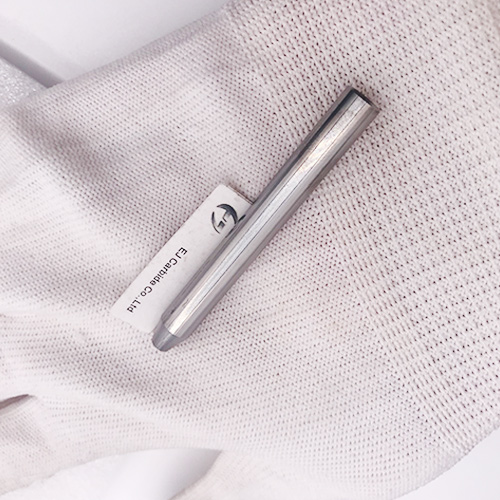

Carbide abrasive nozzles of waterjet focusing mixing tubes
Material: Tungsten carbide, Nano-carbide, Ultrafine grain tungsten carbide
Purity: 99.7%
Density: 15.6g/cm3 – 15.8g/cm3
Hardness: HRA95.5- HRA97.8
Grain Size: 0.15um-0.2um
Application: Cutting metal, ceramic, stone, glass, and some other waterjet cutting material.
How is the carbide abrasive nozzles of waterjet focusing on mixing tube working:
Inside the carbide abrasive nozzles of waterjet focusing mixing tubes,
the pressurized water passes through a small-diameter orifice and forms a coherent jet of water. The jet then passes through a venturi section where a metered amount of granular abrasive is drawn into the water stream. The mixture of water and abrasive particles passes through a special ceramic mixing tube and the resulting abrasive/water slurry exits the carbide abrasive waterjet nozzles mixing tubes
as a coherent cutting stream of abrasive particles traveling at very high speed.
What the carbide abrasive nozzles waterjet mixing tubes regular sizes:
| ΦD(mm) |
Φd(mm) |
L(mm) |
θ° |
α° |
| 6.00 |
0.76 |
76.2 |
40 |
28 |
| 6.00 |
1.02 |
76.2 |
40 |
28 |
| 6.35 |
0.50 |
76.2 |
40 |
28 |
| 6.35 |
0.76 |
76.2 |
40 |
28 |
| 6.35 |
1.02 |
76.2 |
40 |
28 |
| 7.14 |
0.76 |
76.2 |
40 |
28 |
| 7.14 |
1.02 |
76.2 |
40 |
28 |
| 7.60 |
0.76 |
76.2 |
40 |
28 |
| 7.60 |
1.02 |
76.2 |
40 |
28 |
| 9.45 |
0.76 |
76.2 |
40 |
28 |
| 9.45 |
1.02 |
76.2 |
40 |
28 |
For more information about carbide abrasive waterjet nozzles focusing mixing tubes, please feel free to contact us at +86 0731 22995400 or
sales@ejtungsten.com (Click the email can send message directly)
