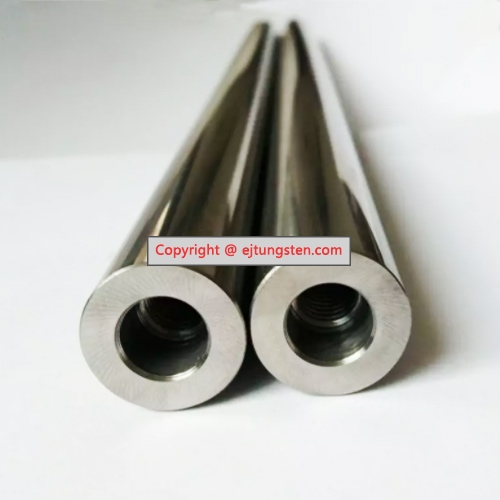

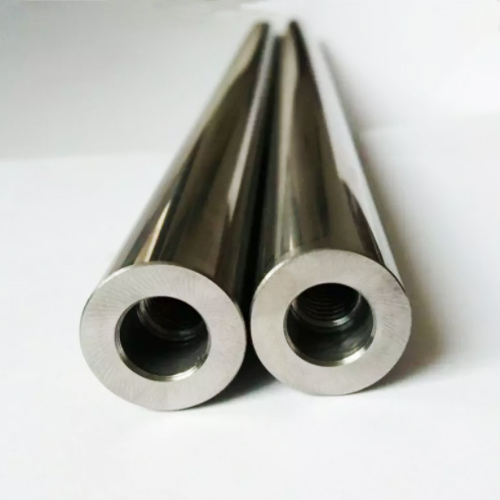

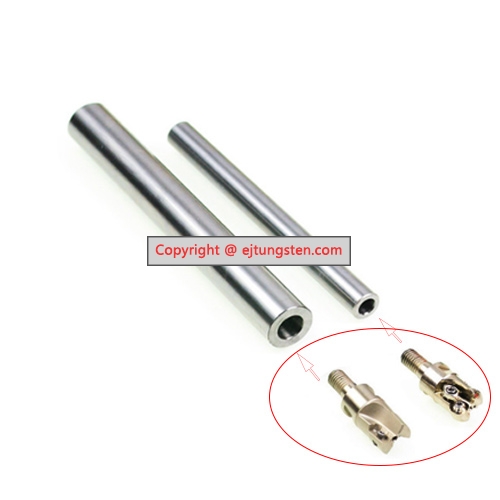

Anti-joggle Carbide boring bar, Anti-vibration boring carbide bar
The Carbide boring bar is an important tool accessory in CNC machining.
Generally, the boring bar is made of steel, such as 40Cr and 45#, For some high precision machining process which is a very small shake tolerance, The anti-joggle boring bar is requested,
The steel material is not meet the needs, then we need a tungsten carbide boring bar.
Material: Tungsten carbide, cemented carbide
Grade: YG6, YG8
Size: 12*100mm carbide boring bar with a thread of M6*1.0
We have other sizes of carbide boring bar to choose:
8*100mm, 8*120mm with a thread of M4 *0.7
10*100mm, 10*150mm with a thread of M5*0.8
12*100, 12*150mm, 12*200mm with a thread of M6*1.0
16*100mm, 16*150mm, 16*200mm, 16*250mm with a thread of M8*1.5
20*100mm, 20*150mm, 20*200mm, 20*250mm, 20*300mm, with a thread of M10*1.75
25*100mm, 25*150mm, 25*200mm, 25*250mm, 25*300mm, 25*350mm, with a thread of M12*1.75
32*150mm, 32*200mm, 32*250mm, 32*300mm, 32*350mm, 32*400mm, with a thread of M16*2.0
We can also customize Anti-joggle Carbide boring bar, Anti-vibration boring carbide bar with other sizes and specifications according to your drawing or sample.
Roughness: Ra0.4
Hardness: HRA90
For more information about the Anti-joggle Carbide boring bar, Anti-vibration boring carbide bar, please feel free to contact us at +86 18673339477 or sales@ejtungsten.com
