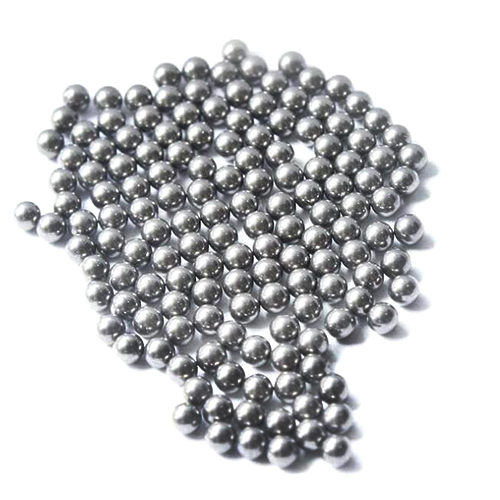

tungsten alloy ball for fishing lure W90:
Tungsten alloy ball for fishing lure W90 detail:
Material: Tungsten alloy
Grade: W90
Content: Tungsten-90%, Nickle-7.1%, Iron-2.9%
Size: 3.0mm, 3.5mm,4.0mm, 4.5mm,5.0mm,5.5mm,6.0mm tungsten alloy ball
Typecial Hardness: 28HRC
Strength: 750MPa
Density: 16.9g/cm3
Surface Roughness: Ra0.4
Tungsten alloy ball for fishing lure W90 produced by EJ Carbide , has a very low surface roughness and small friction coefficient,so it can move freely in the rubber fishing lure. The center of gravity of the whole fishing lure are changing with its movement, which makes the fishing lure more vivid and more like a real fish. At the meantime, the tungsten alloy ball for fishing lure has a density up to 16.9g/cm3, so that in the same weitht, the tungsten alloy weight balance ball are smaller than the other material ball, more in line with the weight balance requirements.
Grade of tungsten alloy ball for fishing lure
| ASTM-B-777-87 |
Class 1 |
Class 2 |
Class 3 |
Class 4 |
| Miniumum Density(g/cc) |
16.85 |
17.15 |
17.75 |
18.25 |
| Minimum Density (lbs/in3) |
0.608 |
0.619 |
0.641 |
0.659 |
| Nominal W Content (wt.%) |
90 |
92.5 |
95 |
97 |
| Nominal Nickel Content (wt.%) |
7.1 |
5.4 |
3.6 |
2.1 |
| Nominal Iron Content (wt.%) |
2.9 |
2.1 |
1.4 |
0.9 |
| Typical Hardness (HRC) |
28 |
28 |
29 |
30 |
| Modulus of Elasticity (x106 psi) |
45 |
48 |
50 |
52 |
| Ultimate Tensile Strength Min. (ksi) |
120 |
120 |
120 |
110 |
| 0.2% Offset Yield Strength Min (ksi) |
80 |
80 |
80 |
80 |
| Minimum % Elongation (1" Gauge Length) |
10 |
8 |
6 |
2 |
